  • General characteristics

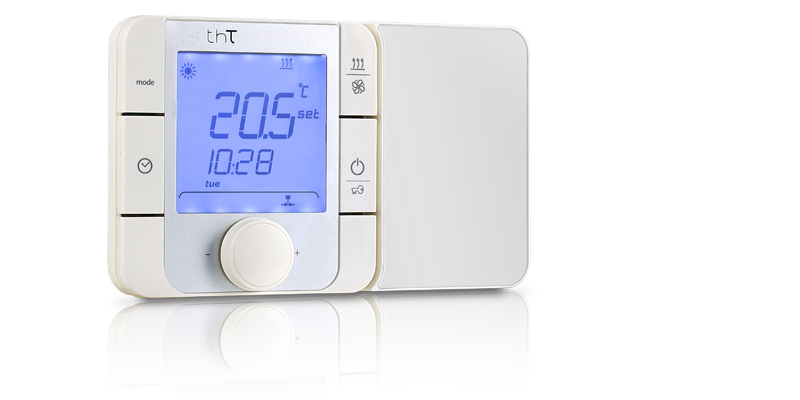

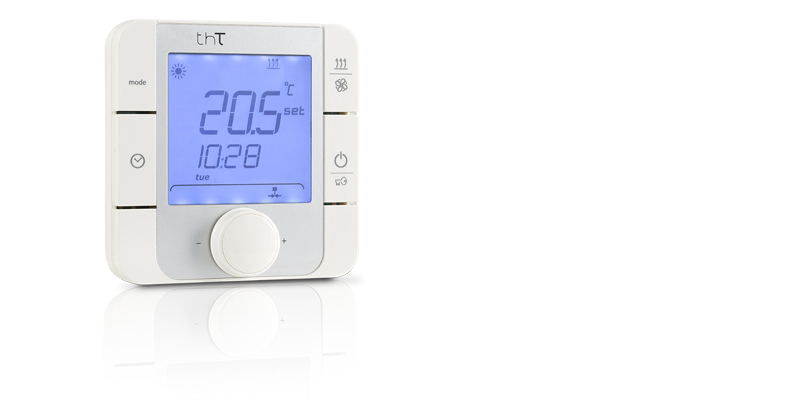

    thT is a new CAREL thermostat for temperature and humidity in control domestic or commercial environments, fitted with a simple and intuitive user interface.
    The device's compact size make it ideal for any type of space, and is perfect both as the user interface (HMI) for heat pumps, rooftop units, air handling units, etc. and as the zone controller terminal for centralized installations.

    The thermostat can operate either:

    • in stand-alone mode, as a room thermostat;
    • connected via a Modbus® RS485 serial network to a programmable controllers, for various applications (e.g. as zone controller in radiant systems).


Documentation

Technical

  • 2D/3D drawings
    Code Description Language Date * Release
    Code 2d-3d thT - flush mounting

    Description 2D-3D drawings

    Language ALL

    Date 13/10/2017

    Release R0

    Code 2d-3d thT - wall mounting

    Description 2D-3D drawings

    Language ALL

    Date 13/10/2017

    Release R0

  • Manuals
    Code Description Language Date * Release
    Code +0300077IE

    Description Electronic thermostat for residential applications

    Language ENG  FRE  GER  ITA  SPA

    Date 11/04/2016

    Release 1.3

  • Technical Leaflets
    Code Description Language Date * Release
    Code +0500077IE

    Description Termostato elettronico per applicazioni residenziali con seriale RS485 ModBus/ Electronic thermostat for residential applications with RS485 ModBus serial connection

    Language ENG  ITA

    Date 16/07/2015

    Release 1.3


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +3000085IT

    Description Termostato thT - temperature humidity Thermostat

    Language ITA

    Date 16/07/2015

    Release 1.2

    Code +3000085EN

    Description thT Thermostat - temperature humidity Thermostat

    Language ENG

    Date 16/07/2015

    Release 1.2


Images

  • High resolution images
    Code Description Language Date * Release
    Code PH13LTH301-thT-power-supply

    Description thT-power-supply-CAREL-Terminals-RoomTerminals

    Language ALL

    Date 02/09/2021

    Release R.0

    Code PH13LTH302-thT

    Description thT-CAREL-Terminals-Room Terminals

    Language ALL

    Date 02/09/2021

    Release R.0
